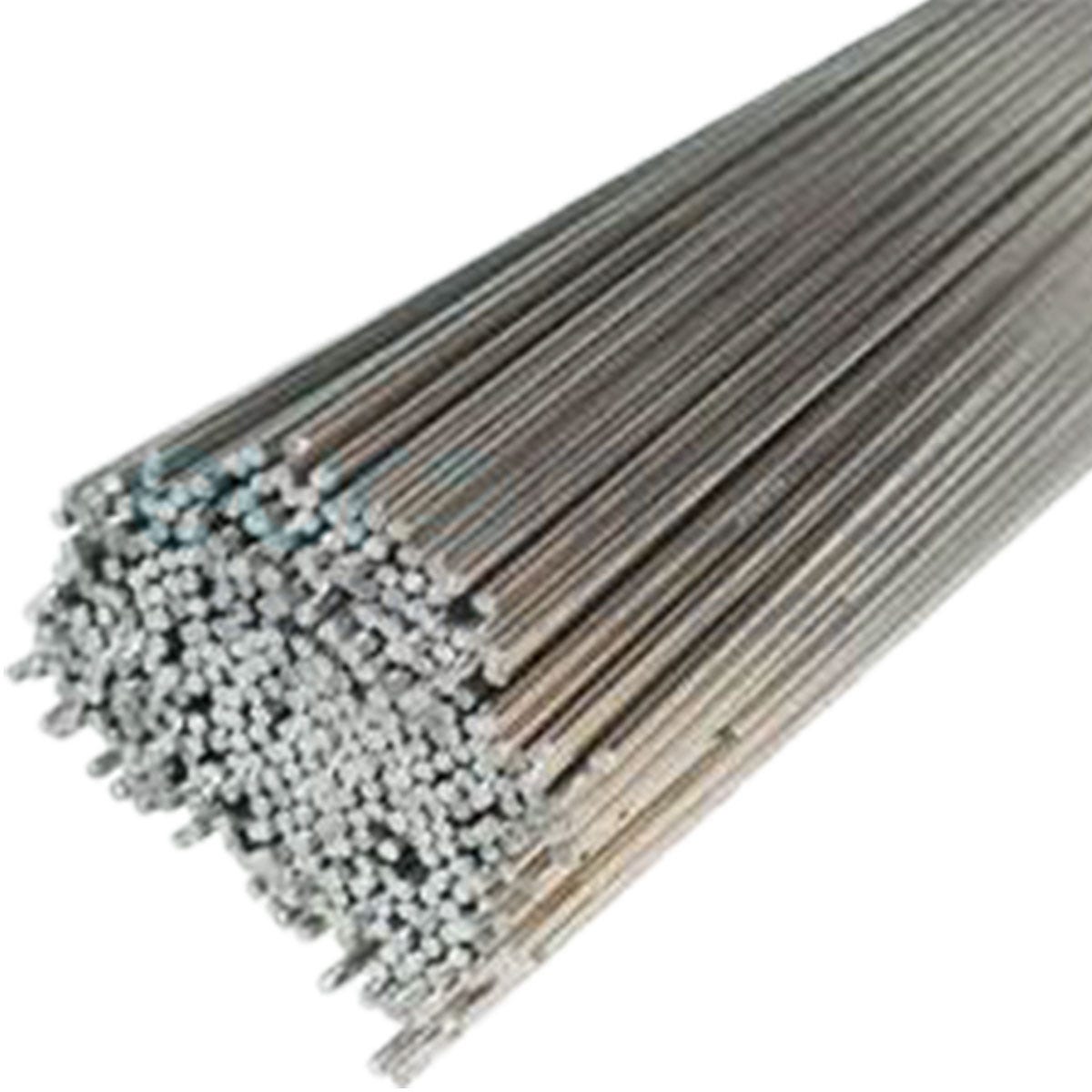

ELITE TIG Wire 883 - Stainless Steel Filler Rod ER309LSi - 5kg ELITE TIG Wire 883 - Stainless Steel Filler Rod ER309LSi - 5kg
View product
main product photo
Downloads
TDS 883_TIG ROD_309LSi.pdf 11 B SDS_ER316LSi-ER309LSi_Welding wire_V1_11.11.24.pdf 11 B

Need Help ?

NEED HELP?
No worries! We're here to help - here's how you can reach us...

ELITE TIG Wire 883 - Stainless Steel Filler Rod ER309LSi - 5kg

In stock
SKU
VR883
  • loading...
Stainless Steel TIG Welding Wire ER-309LSi is a 23 Cr/ 12 Ni Stainless Steel TIG rod. 5kg pack.
Product/Code
DIA
Length
Availability
Unit/Pack/Carton
Qty
VR88316105
DIA: 1.6mm
Length: 1000mm
Availability: In Stock
1.6mm
1000mm
In Stock
  • loading...
Add to Quick Order
VR88324105
DIA: 2.4mm
Length: 1000mm
Availability: In Stock
2.4mm
1000mm
In Stock
  • loading...
Add to Quick Order
Description

Tig Welding Wire ER309LSi

is a 23 Cr/ 12 Ni Stainless steel TIG rod. Suitable for welding of stainless steel such as AISI 309 and is used for the welding of dissimilar 300 series austenitic stainless steel and ferritic steels and for buffer layers and buttering layer prior to hardfacing. It is used for depositing intermediate layers on steel prior to depositing 308 grade stainless steel. Also used for the welding of clad steels where service temperatures are below 300°C. The weld metal has a delta-ferrite content of ~12% resulting in a high resistance to hot cracking. The increased silicon level results excellent weld pool fluidity to give a smooth deposit bead appearance.

Material to be welded: A 312 TP 309S Carbon steels to stainless steels joint.

  • 1000mm Long Lengths.
  • DC (-)

Recommended protective gas

  • 100% Argon

Classifications

  • AS/NZS ISO 14343 B-SS309LSi
  • EN 12072 : W 23 12 LSi
  • AWS A 5.9 : ER 309 LSi

Approvals

  • CE

Welding Positions

PA - PB - PC - PF - PE - PF2
