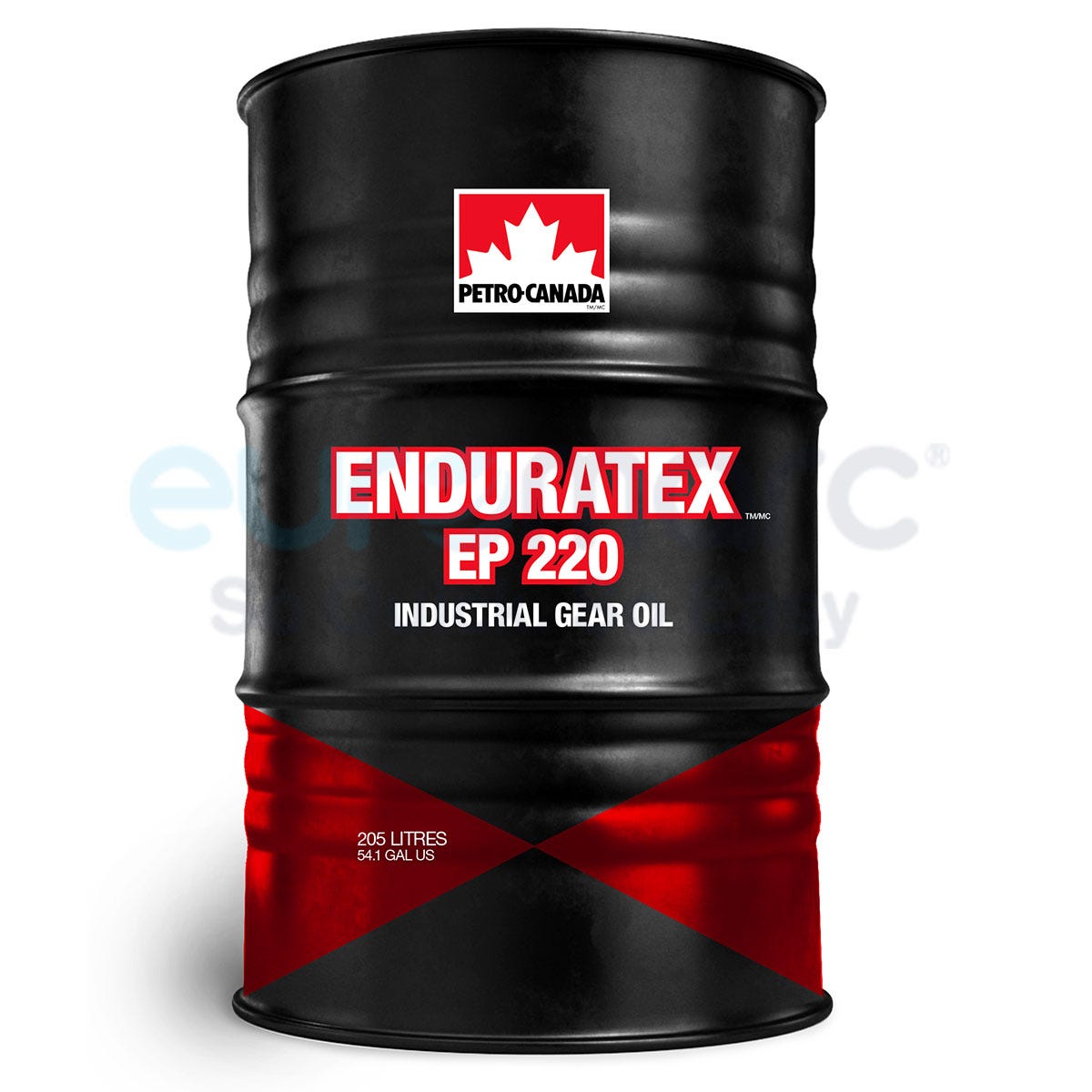

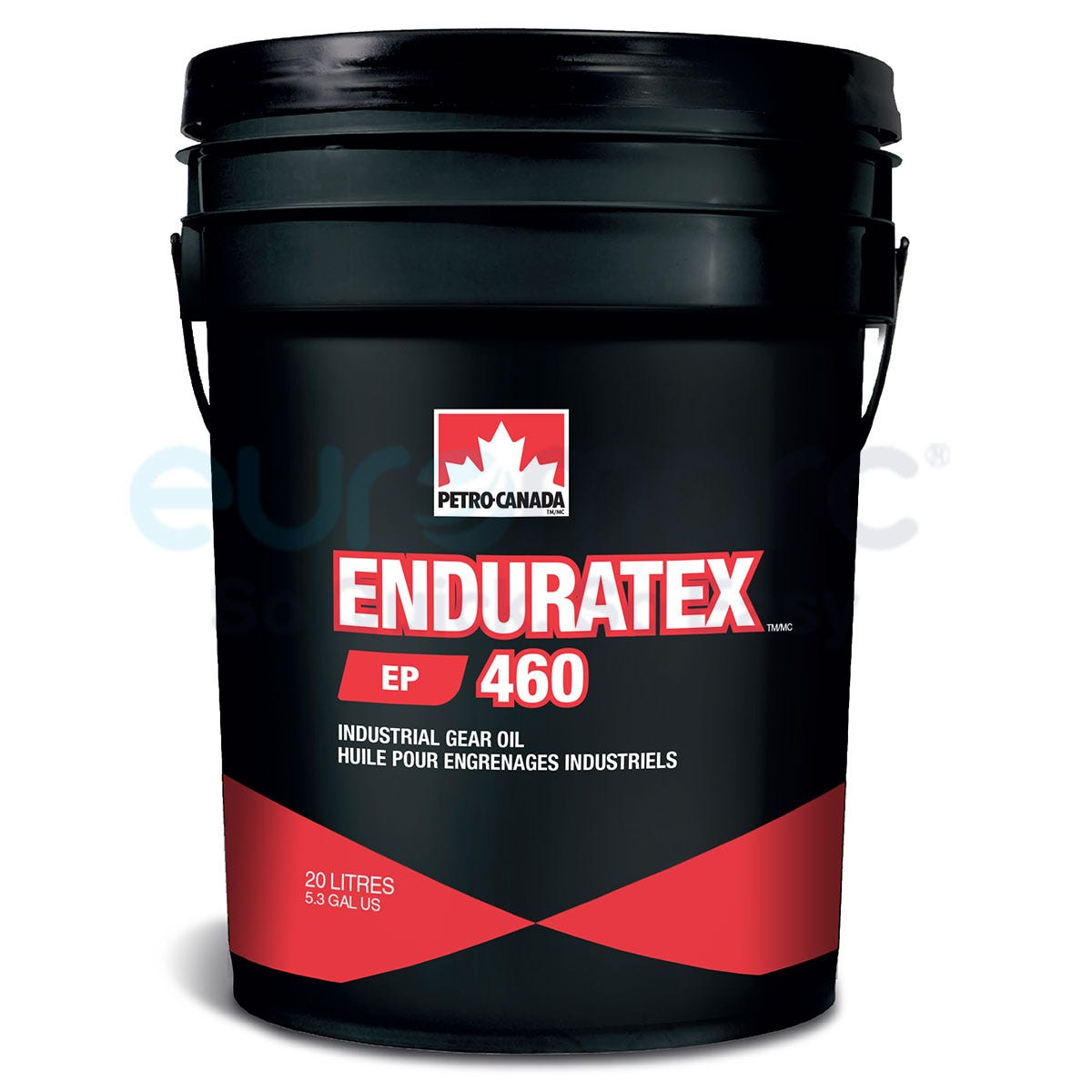

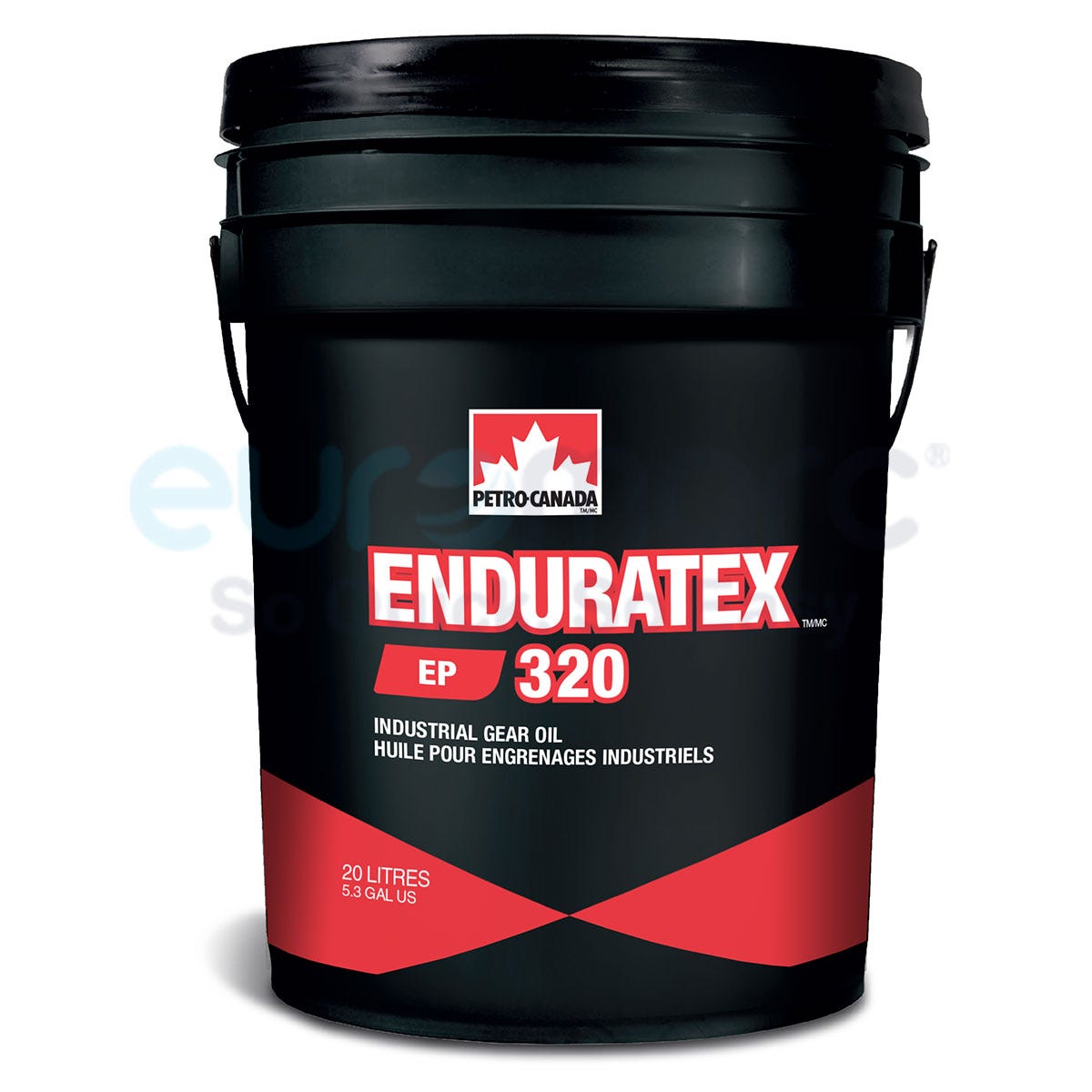

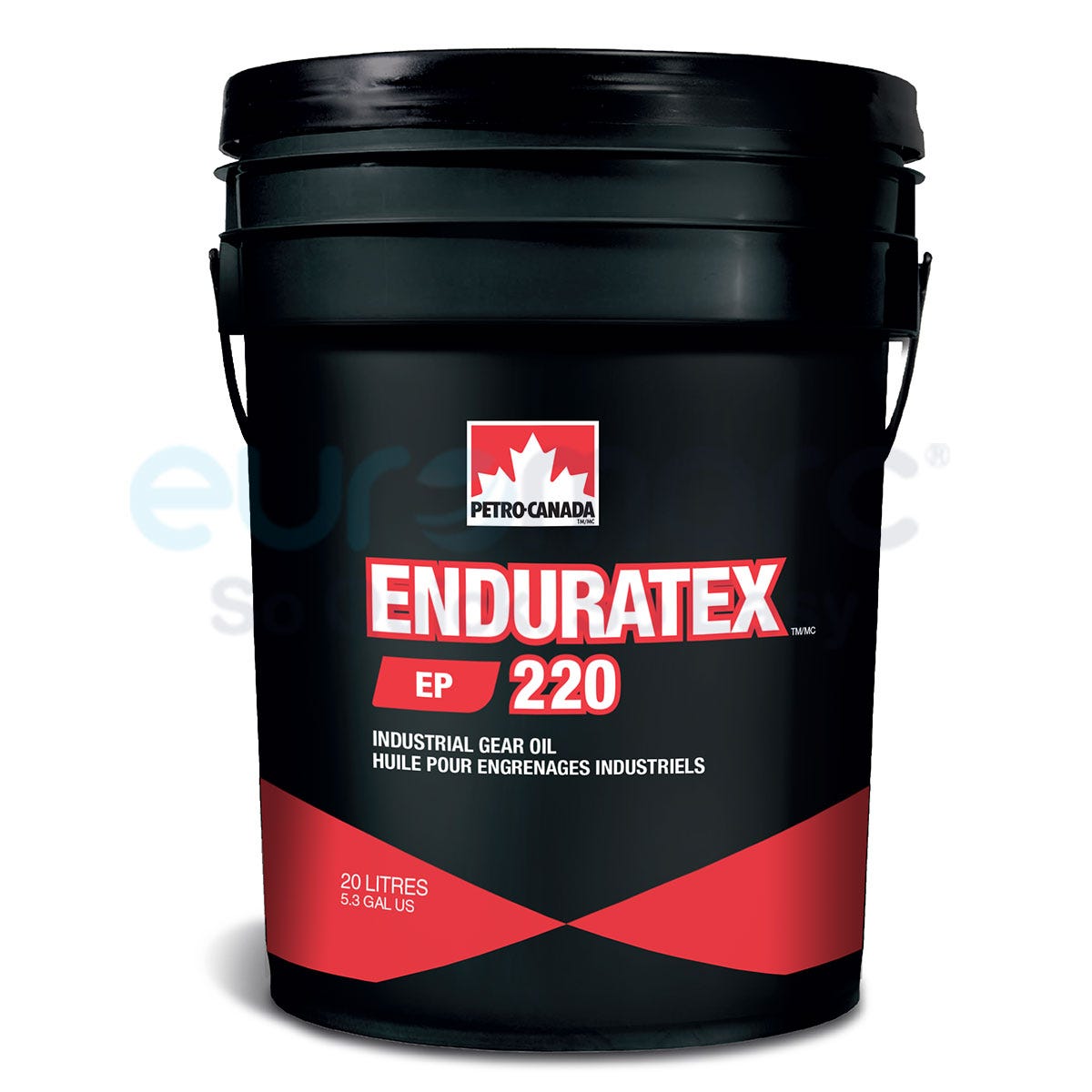

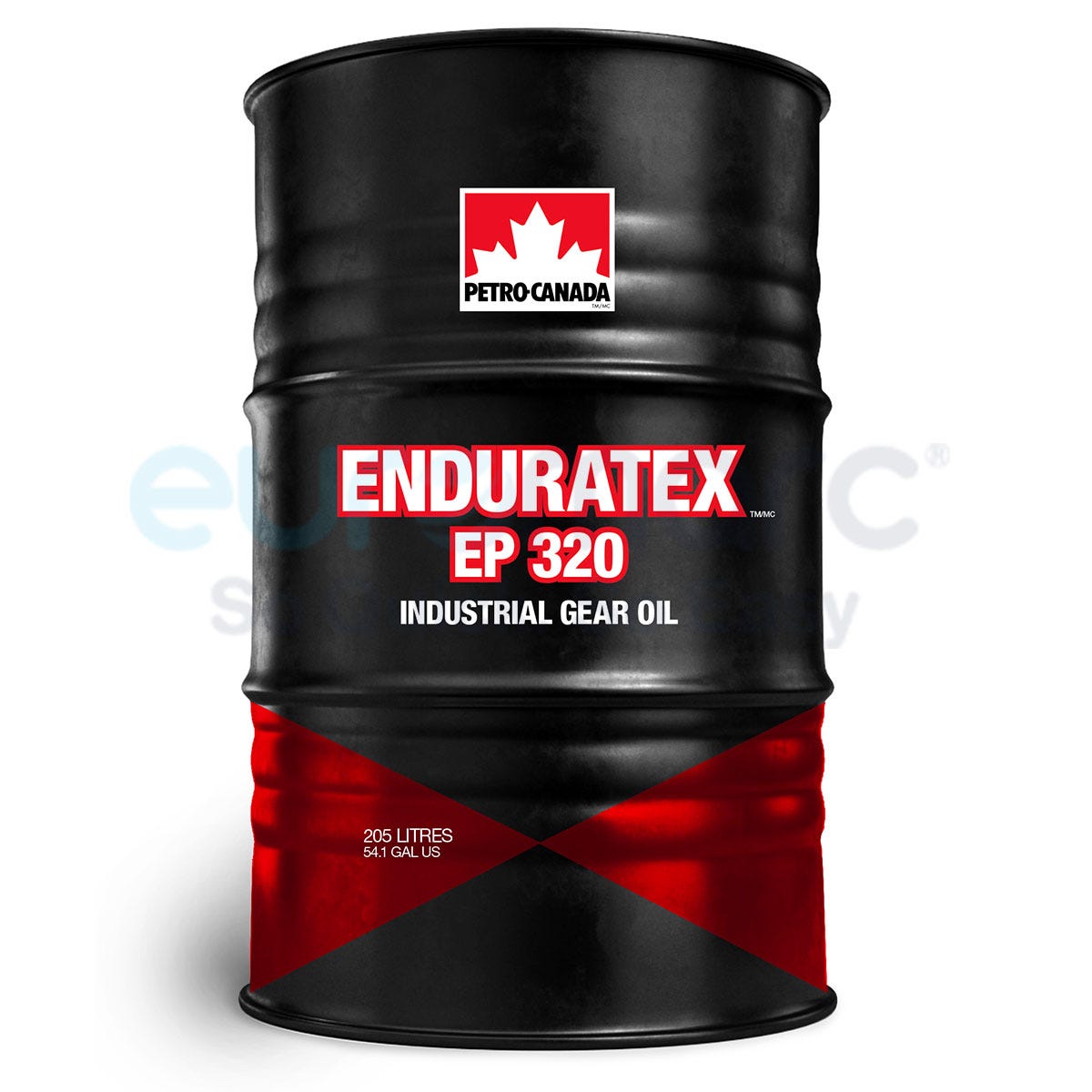

ENDURATEX EP Gear Oils - Sustained Industrial Gear Protection

ENDURATEX EP Gear Oils are specially formulated to deliver sustained long-life, antiwear, and extreme pressure protection to industrial gear drives and bearings. These oils are available in nine ISO viscosity grades and two multigrades.

Key Features & Benefits

• Exceptional long life:
• Reduces operating and maintenance costs.
• Longer oil life helps extend time between oil changes.
• Withstands high operating temperatures for longer periods.

• Reduces the build-up of harmful sludge and varnish deposits for reduced wear and longer oil life.

• Excellent film strength and extreme pressure properties:

• Prevents seizure, scuffing, or spalling of gear teeth and bearing surfaces under shock-loaded conditions.
• Reduces gear and bearing wear.

• Reduces maintenance costs and extends equipment life.

• Protects against rust and corrosion:

• Prevents iron parts from rusting.
• Protects copper-containing bearings, bushings, etc., from corrosive attack.

• Extends equipment life.

• Excellent water separability:

• Prevents emulsion formation.
• Allows water to be drained off before oil is re-circulated.

• Eliminates corrosive damage to metal parts when water is present.

• Low foaming tendency:

• Ensures a continuous lubricant film present at all times.
• Prevents overflow from gear-boxes and oil reservoirs.
• Reduces the possibility of cavitation damage to oil circulating pumps where installed.

Applications

ENDURATEX EP Gear Oils are versatile, high-quality lubricants recommended for use in all types of enclosed industrial gear drives where an extreme pressure gear oil is specified. They are also recommended for lubricating all types of heavy or shock-loaded bearings.

In addition, the low viscosity grades of ENDURATEX EP are effective wire-rope lubricants.

ENDURATEX EP Oils offer excellent gear and bearing protection and long service life in a wide range of gear designs. These include Spur, Internal, Planetary, Rack & Pinion, Bevel, Spiral-Bevel, Helical, Herringbone, and Worm gears.

ENDURATEX EP Gear Oils are approved by many manufacturers of industrial gear drives, including: - ENDURATEX EP 68 has Metso Paper approval and is recommended for pulp and paper companies using thermo-mechanical pulping processes (TMP). - ENDURATEX EP Gear Oils are approved according to Fives Cincinnati (formerly MAG IAS) P-specifications: P-77 (EP 150), P-74 (EP 220), P-59 (EP 320), and P-35 (EP 460). - ENDURATEX EP Gear Oils are also suitable for use in applications by the following manufacturers: GreeyLightnin, Hansen Transmissions, Kraus-Maffei, and David Brown, as well as in situations requiring DIN 51517 Part 3, ISO 12925 – Type 1 CKC or AGMA 9005-F16 specifications.
