TECMEN Freflow Filters.

Replacement filters for TECMEN FreFlow respirator

Pre-Filter

• Used to filter large particles & to extend the life of the P3 Main filter.(come as a pack of 5)

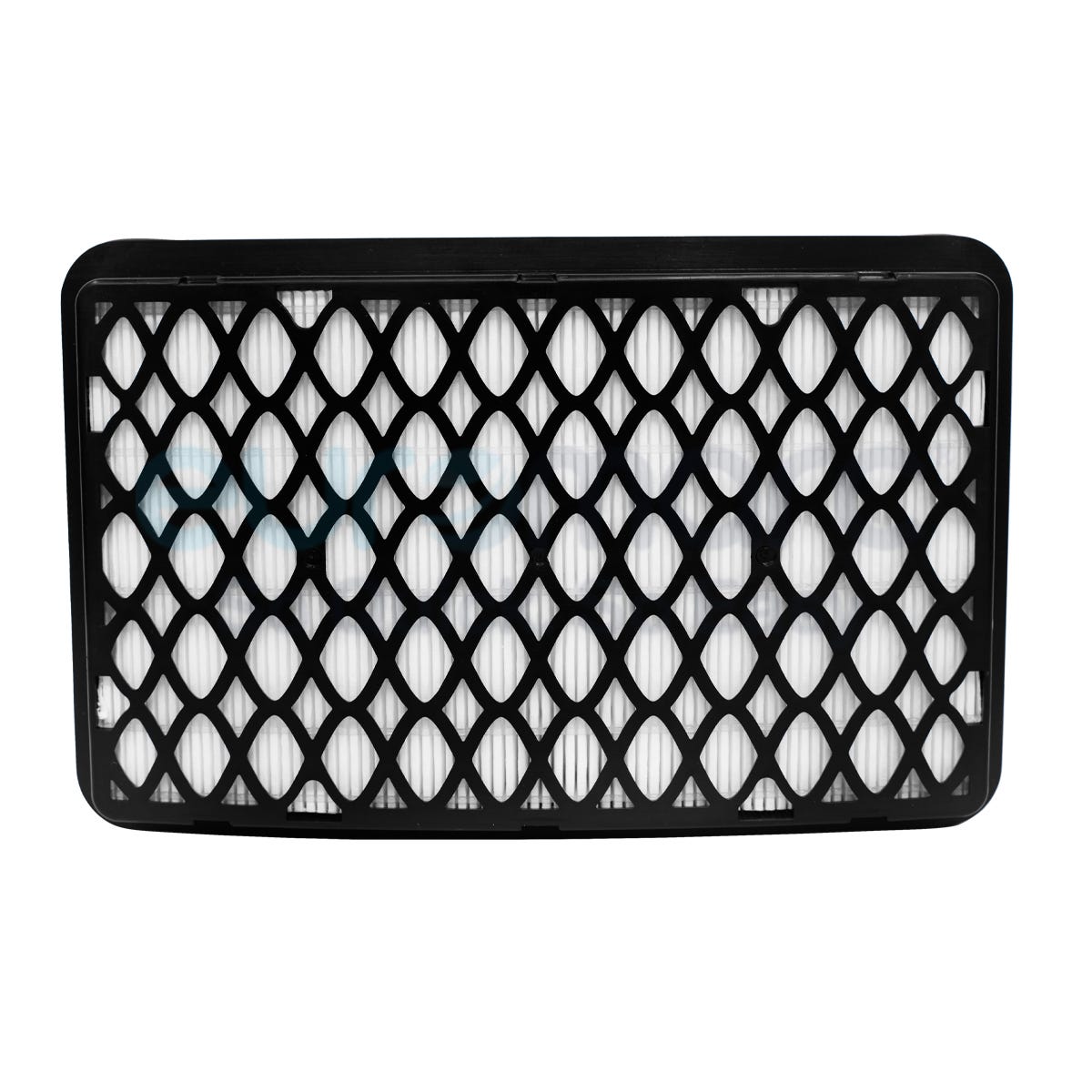

P3 Main Particle Filter

• For Highest level of welding, dust, and grinding particle protection, P3 main filter provides 99.97% particle, compliant to AS/NZS 1716:2012.
• The Main Particle filter is used in conjunction with a Pre-Filter*.

Odour filter

• Is an optional extra for the Freflow PAPR respirator system. Charcoal filter layer is recommended to help to reduce nuisance odours during cutting, burning, welding applications.
• The Odour filter is also used in conjunction with a Pre-Filter & Particle filter*. Replace any time you can smell odours while wearing the respirator.

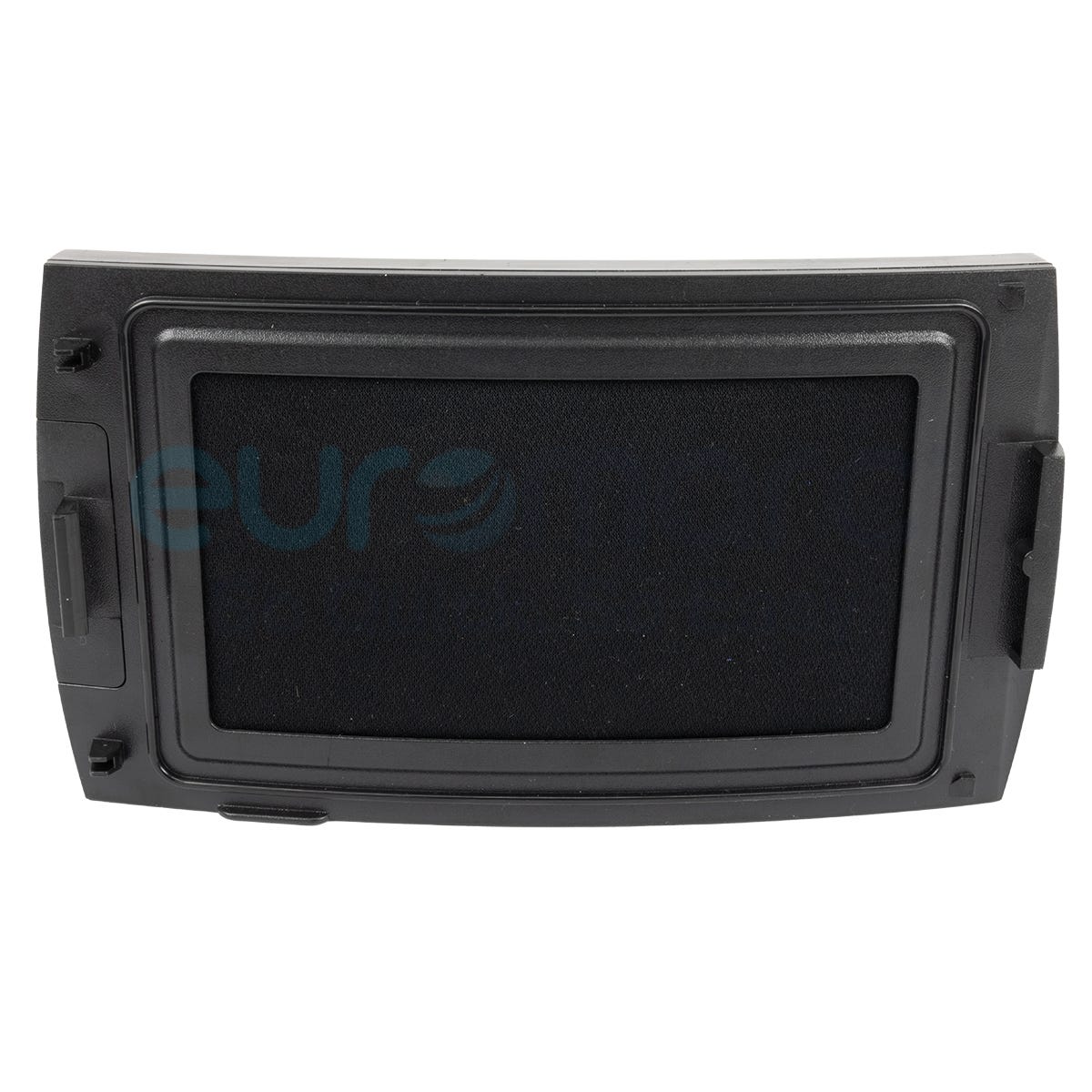

• Available in a complete unit with holder and filter(Need to start with this), and replacement ongoing filters

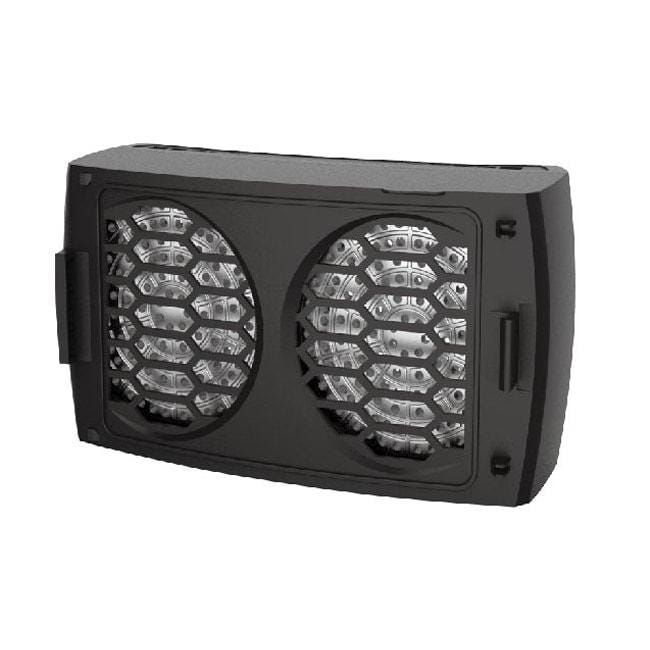

ABEK1 Gas filter

• An optional extra filter to be used to protect against vapours & gases class1 (A1B1E1K1).
• Filter type A = Certain organic vapours such as cyclohexane (boiling point above 65°C) from solvents such as those in paints and thinners.
• Filter type B = Acid gases such as chlorine, hydrogen sulfide (sulphide) and sulfur dioxide.
• Filter type E = Vapours from sulfur dioxide.
• Filter type K = ammonia gas.
• The gas filter is also used in conjunction with a Pre-Filter & Particle filter*. Replace filter any time you can smell odours while wearing the respirator.

*Refer to Filter setup diagram for more connection details.
